VW Studio Lighting Hdr

Free V-Ray studio lighting to preview your dirty materials and not only. Enjoy it!

If you feel that you have created some high quality materials please share them with us using our GET PUBPLISHED form. We would like to enhance our *Xfree3D - Materials section.

Technical info.

• Software used: 3ds Max 2011 | V-Ray 2.40
• Linear Workflow Gamma 2.2
• Resolution set 1000 X 1000 pixels.
• Three platform's colours. White | Grey | Black.
• Three render presets. Low | Medium | Ultra.
• One V-Ray light type Dome with HDR map from NoEmotion included.
• Download Hdr map. Link1 | Link2 | Link3
• One locked V-Ray physical camera.

How to use it.

• To select VW Studio's colour just change the platform's polygon ID.
  Set ID: 1 White | Set ID: 2 Grey | Set ID: 3 Black
• Materials & lights have 12 subdivis in Low presets.
  Materials & lights have 12 X 2 =24 subdivis in Medium presets.
  Materials & lights have 12 X 2,5 =30 subdivis in Ultra presets.
• To unlock the camera select both Camera & Target and then go to Command panel -> Hierarchy -> Link Info-> turn off x,y,z everywhere.
• For three times faster result turn on "Store with irradiance map" option in all lights.
  You will observe not a big difference.

Advantages.

• First of all it's absolutely Free!
• Its design is fresh & sportive for comfortable feeling by using it on a daily basis.
• Close enough to a real lighting studio concerning EV and Lights' units.
• Easy check of dirt as it contains antithetic grouts from the lower to the upper part.
• Enough good and fast result using both low and medium presets.
• Uniform sampling.
• Similar result using the three different shades of its platform. White | Grey | Black.
• A slight Curves correction is applied for a better contrast.

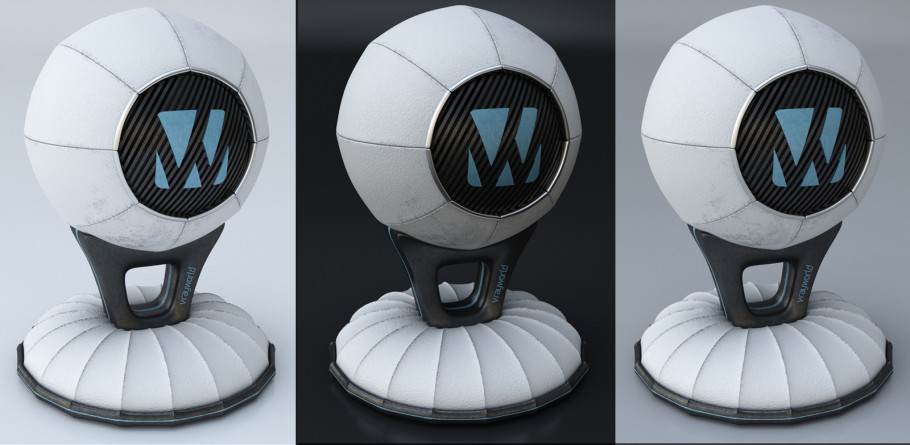

• Rotate VW Shader Ball 180 degrees. Surprise! It's double face with different logo :)
